全自動X射線載重車（轎車）輪胎檢測系統
X-ray inspection system for TBR tire
系統簡介：
Brief introduction

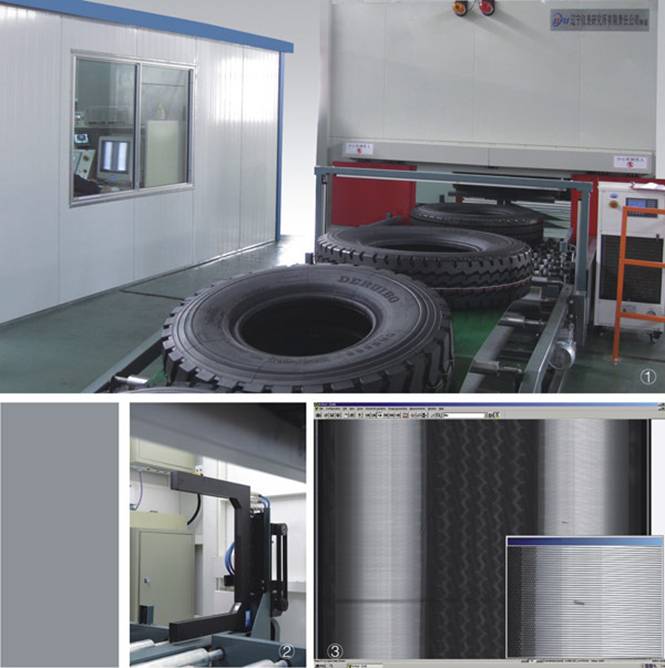

全自動X射線載重車（轎車）輪胎檢測系統主要用于載重車（轎車）輪胎內部結構及質量的在線無損檢測。系統由高頻高壓X射線系統、數字成像系統、機械運動系統、輪胎自動識別系統、電氣控制系統、X射線防護系統、視頻監視系統等組成，自動化程度高，性能穩定可靠，技術達到國際領先水平，通過了遼寧省科技成果鑒定，被國家科技部、環保部、商務部、質量監督檢驗檢疫總局四部委列為國家重點新產品項目。
The system is designed for truck(car) tire. I It is a full-automatic system. The inspection result can be shown on the PC’S screen excellently. t includes high frequency and voltage X-ray system, digital imaging system, mechanical motion system, tire identifying system, control system, X-ray protection system, video monitor system and so on.The system is a national key new product, and reaches international leading level.
系統特點：
Characteristic
■輪胎自動對中
Automatic centering
■運動機構平穩可靠、定位精確
Stable and high-precision motion mechanism
■操作模式便捷高效
Convenient and efficient operation
■一次成像，圖像清晰
One view with excellent image
■無盲區檢測
Bead to bead inspection
■檢測速度快
Faster inspection
■防護安全可靠
Safety and credibility
系統參數：
System parameter
|
項目
Project |
轎車輪胎
X-ray inspection system for car tire |
載重車輪胎
X-ray inspection system for truck tire
|
|
輪胎外徑
Outside diameter: |
500～1000㎜ |
700～1280㎜ |
|
輪胎內徑
Inside diameter |
13～24〞 |
15～25〞 |
|
輪胎斷面寬
Overall width |
400㎜ |
450㎜ |
|
輪胎重量
Weight: Max. |
Max80kg |
Max120kg |
|
分辨率
Resolution. |
0.25-1.3mm |
0.25-1.3mm |
|
動態范圍
Dynamicrange. |
不小于12bit(4096灰度級） |
不小于12bit(4096灰度級） |
|
最小積分時間
Integrationtime. |
1.5ms |
1.5m |
